WB2REM & G4CDY'S

ECHOLINK-VoIP

ALL MODE INTERFACE
REV. C

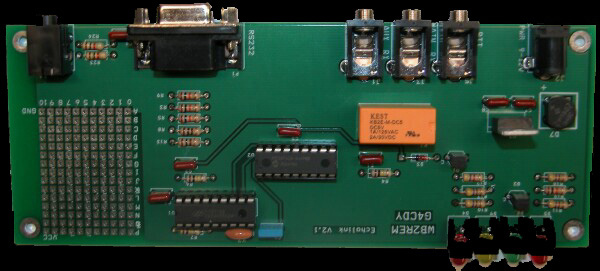

 ECHOLINK-VoIP BOARD Rev. C

Works Great on ECHOLINK and E-QSO and other Digital Sound Card Modes.

THIS UNIT DOES NOT HAVE COS OR INTERNAL VOLUME CONTROL LEVELS LIKE THE AMI-2

The ECHOLINK-VoIP Rev C. board is used in conjunction with the ECHOLINK Software (http://www.echolink.org), EQSO software in VOX mode and other Digital Sound Card Modes. When it is wired to a radio (mic) (RX audio out) (ptt), the board and your computer, you are able to remotely access worldwide stations on the ECHOLINK and EQSO listing. This is done by hitting the node touchtone access code. Voice responses comes back from the software to tell you whether you have connected or not. Through our interface board you can talk almost any where in the world through your HT on either simplex or on a repeater. You can also operate most sound card digital modes.

Board Features:

Board Features:

1. PLUG & PLAY (Cables other than power cable supplied by the user). A mono audio cable connects between the computers mic and back of the unit. Two other mono audio cables go from the Radios RX out and PTT to the unit. One additional audio cable goes between the radios mic to the speaker out of the computer.

2. Built in Power Plug!!

3. New Prototype work area!!!

4. Built in Serial Port Connector!!!

5. Works great on Echolink, EQSO and other VOIP software. Software switchable setting for RTS or DTR.

6. Operates On All Sound Card Modes.

7. VOX operation only.

8. Available in shielded heavy duty enclosure with LED indicators for Power, Activity, PTT TX and DTMF.

9. Comes ONLY in Kit Form.

10. Simple easy design to build! Only 2 IC's!!! Can be assembled in less than an hour. Proven technology.

11. Programmable Timeout Timer through Hyperterminal.

12. In Line audio transfer from the RX audio Out through the ECHOLINK Board to the Microphone In of the Computer!!

13. On Board highly reliable Touchtone Decoder.

14. Proper double sided PCB with a solid ground plane on the top, which avoid RF pick up you often get with cheaper single sided versions.

15. Operates off of 9-15V. Power connector and wire supplied. Power can be connected + center or - center.

16. "D" Touchtone produces a remote momentary trigger of your link for distance checking.

17. Board comes complete with instructions for easy set up.

18. Available ONLY in a kit

19. Through Board audio transfer which reduces the need for a Y connector.





CLINK HERE TO DOWNLOAD THE FREE ECHOLINK SOFTWARE



If you would like to purchase an Echolink Rev. C Kit
(CLICK HERE).

or email me for additional information

WB2REM@AMSAT.ORG

Phone # (561) 654-4444

CREDIT CARDS NOW ACCEPTED BY TELEPHONE


Updated: 07/29/15
